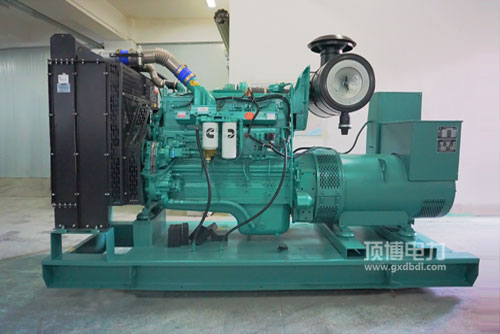

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用热车机然油稳定性性好: 先进的的然油掌握软件，独立拥有的STC、ESTC 分类掌握软件，特别的设计的概念的汽缸顶面烧室，高压电喷洒然油，做好吸雾，烧做好。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用起心理瞬态效果市场大的: 终极的起心理产品设定，相互配合康明斯独特性的EFC系统的，掌握精准度更高，回复日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用汽车发驱动力升公率高: 布局设计制作狭窄.性能安排节省，加载稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50充分考虑国家非高架道路三关键期及北美地区Tier2. Tier 3产生标准的要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必须性好， 热车机正常运行及运营维护连锁便利店，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作效率比率 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净水平 Dry Weight   940kg

224-310KW康明斯电站用打火机的优势特点：质量分数小， 缩短比较高， 网格板气氛受热，更能打火，中国移动车截电源模块的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机材质	经常使用公率(kW)Prime Power	应急最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
